Paramtents:
Color: Robin yellow or Black
Packging & Delivery:
32cm x 34cm x 40cm
Min Order: 20 piece
Briefing:
Robin Gasoline engine advantage:
1.spare parts from Japan
2.in stock
3.engineers available to service machinery on line
Detailed:

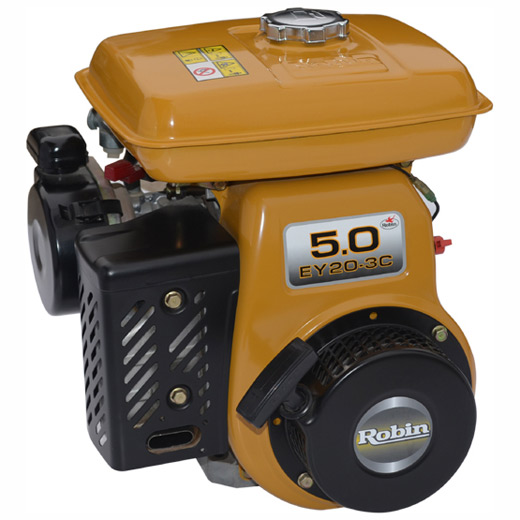

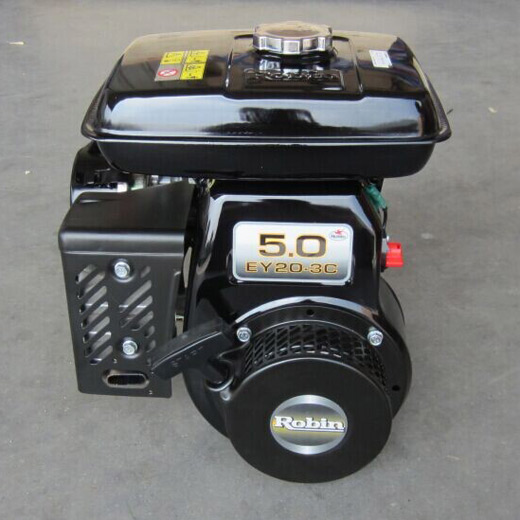

Robin Gasoline engine,EY20 ,5HP
| Model | EY20-3D | |
| Type | Air-cooled, 4-cycle, upright single cylinder, side, valve, horizontal PTO shaft | |
| Bore x Stroke mm(in.) | 67x 52( 2.64 x 2.05 ) | |
| Piston displacement cc(cu.in.) | 183( 11.17 ) | |
| Continuous output kW(HP)/rpm | 2.2(3.0)/3000 2.6(3.5)/3600 | |
| Maximum output kW(HP)/rpm | 3.7(5.0)/4000 | |
| Maximum torque N・m(kgf・m)/rpm(lbf・ft/rpm) | 9.3(0.95)/2800, (6.87/2800) | |
| Directon of rotation | Counter clockwise as viewed from PTO shaft side | |
| Fuel | Automobile(unleaded)gasoline | |
| Fuel Tank capacity liter(US gal.) | 3.8(1.00) | |
| Lubricant | Engine oil SAE 10W-30, 20W, 30W | |
| Lubrication | Mechanical splashing type | |
| Lubricationg oil capacity liter(US gal.) | 0.6(0.156) | |
| Carburetor | Float type | |
| Starter | Recoil starter | |
| lgnition system | Transistorised | |
| Spark plug | NGK B6HS | |
| Govemor | Centrifugal flyweight type | |
| Dry weight kg(lb) | 15.2(33.52) | |
| Dimension length×width×height mm(in.) | 303×326×392 (11.93×12.83×15.43) | |

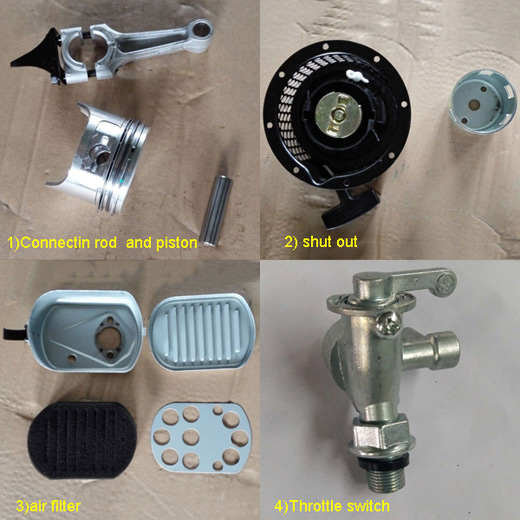

Robin gasoline engine EY20, 5HP spare parts:
Robin gasoline engine 5hp (EY20) for water pump trade information:
Package:caton
Lead time:15days
Shipping:Ocean shipping
Warranty:1 year
Spare parts:avaible forever
payment:TT, LC , Western union
We can design and manufacture as your requiried
Choose Quality, Choose Service, Choose Better Price
